PASS LABS Preamplificatore X 1 + FInale Stereo X 150
PASS LABS Preamplificatore X 1 + FInale Stereo X 150
Impossibile caricare la disponibilità di ritiro

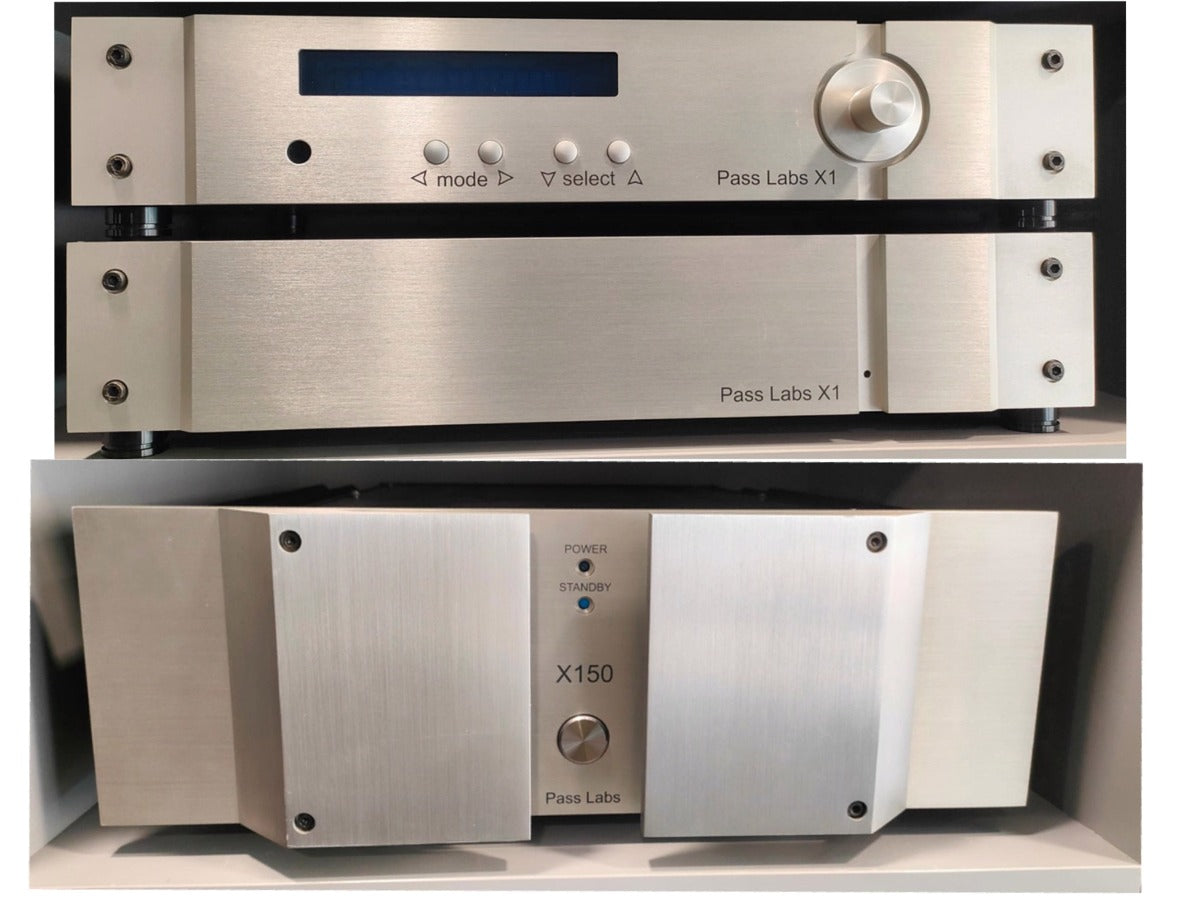

PASS LABS coppia perfetta

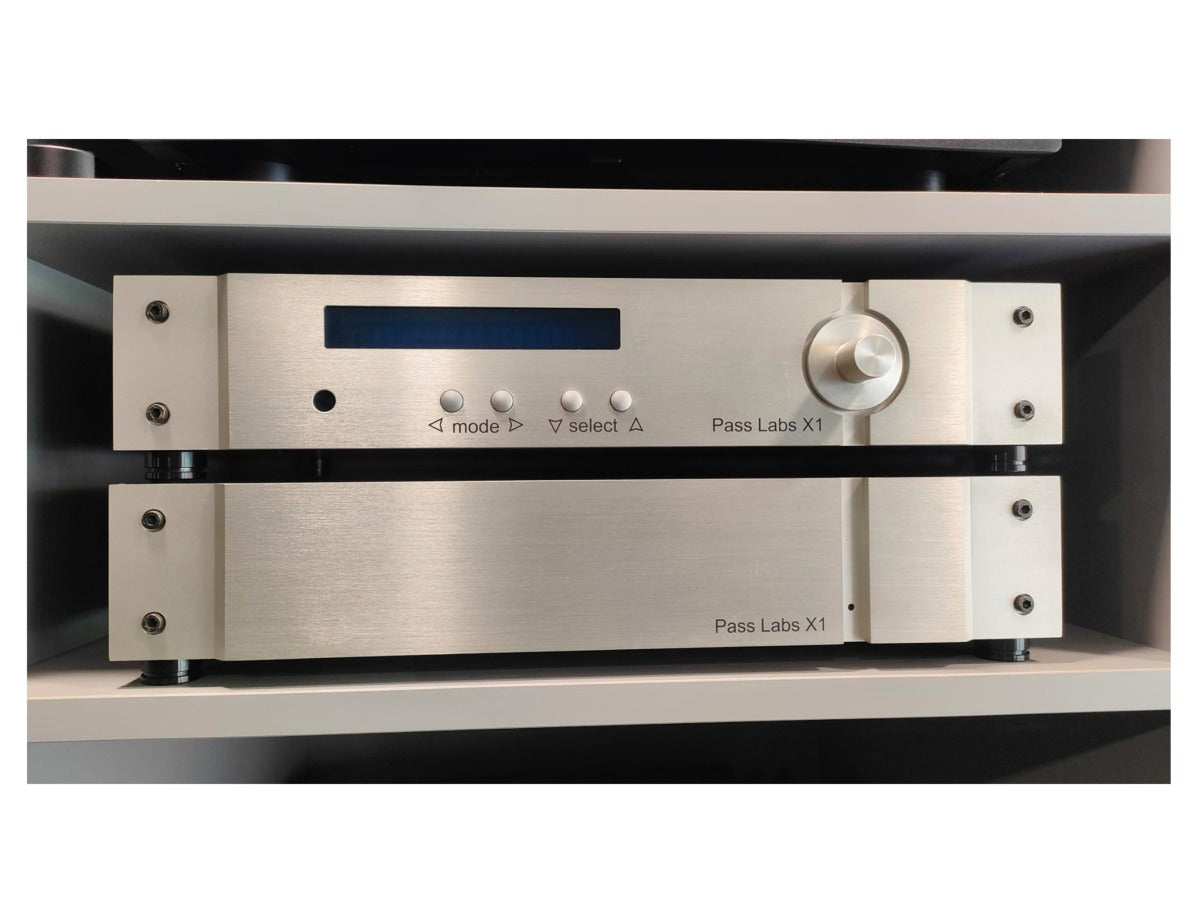

Preamplificatore X 1 due telai con telecomando

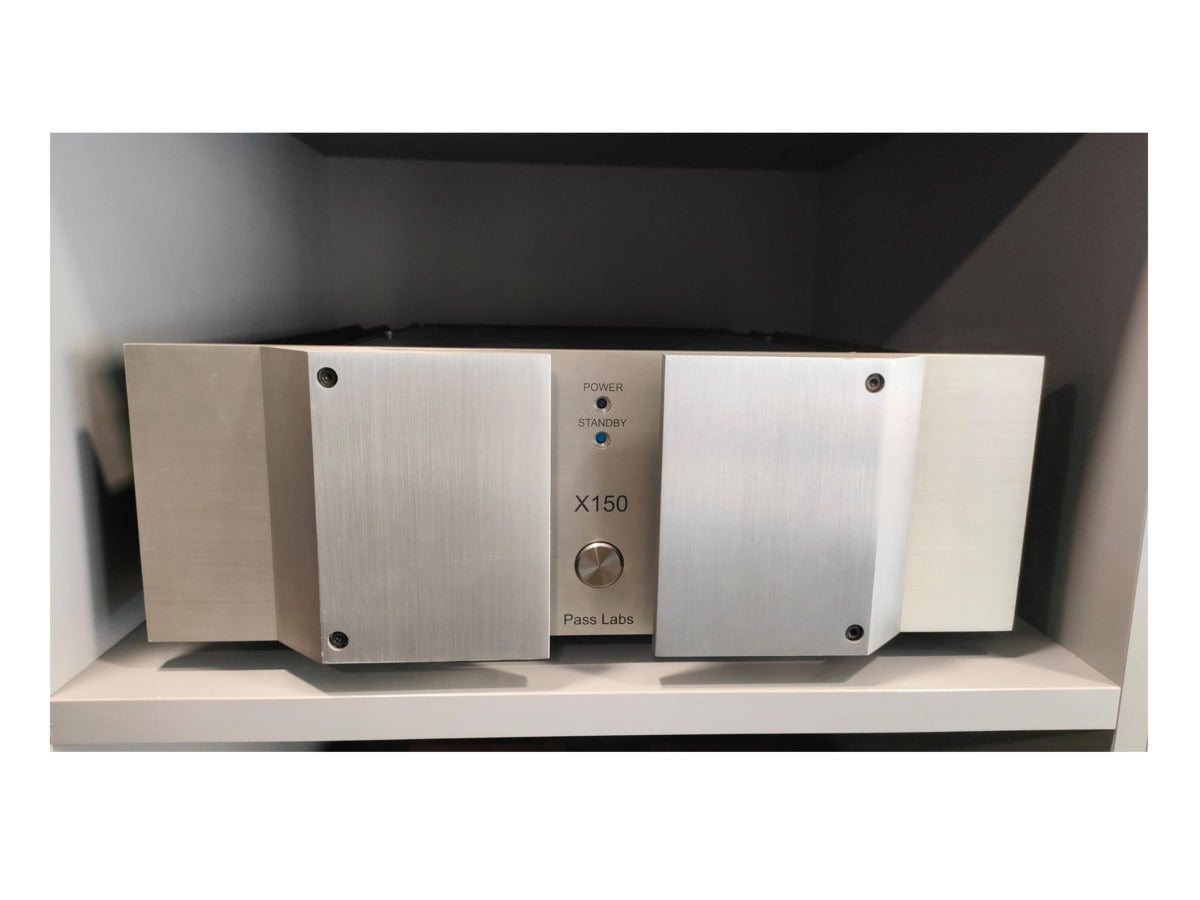

Finale di potenza X 150 2 x 150 Watt su 8 Ohm
vendibili anche separatamente
gli imballi originali non sono disponibili
*-*
Specifiche tecniche:
X 1
Gain: 4dB or 14dB
Freq. Response: -3dB @ 2Hz, -3dB @ 100kHz
Distortion @ 1KHz: <0.1% THD typical, 0.003% @ 2V
Output Impedance: 360 Balanced, 150 Single-ended
Input Impedance: 66K Balanced, 33K Single-ended
Output noise floor: -125dBV ref to 10V output
Dimensions: 2 @ 17"W x 3.5"H x 11.5"D
Weight: 46lbs
X 150
Gain: 30 db
Frequency response: -0 dB at DC, -3 dB at 100 kHz
Power Output: 150 W maximum @ 1% THD, 1kHz into 8 Ohms (300 W into 4 Ohms)
Maximum Output Voltage: +_ 50V
Maximum Output Current: +_ 20A
Input impedance: 22 kohms balanced
Slew Rate: +_ 50V/uS
Output Noise: 300 uV unweighted 20-20 kHz
Random Noise Floor: approx. 2uV
Dynamic Range: 145 db (random noise floor to peak output)
Balanced CMRR: -85 db
DC offset: <100mv
Power consumption: 200 W idle, 600 W max.
Temperature: 20 degrees C. above ambient at idle
Dimensions: 19″W × 6.5″H × 20″ D
Shipping Weight: 70lbs.
